High Streng Crusher Animal Carcass Shredder for Dead Cattle and Pig

Products

High Streng Crusher Animal Carcass Shredder for Dead Cattle and Pig

High Streng Crusher Animal Carcass Shredder for Dead Cattle and Pig

High streng crusher animal carcass shredder for dead cattle and pig 1. shredder shows and brief: 2. Shredder drawing and

Send your inquiry

DESCRIPTION

Basic Info
Model NO. Shredder-A18
Treatment Broken
Application Pig . Cow . Plastic Pet .Pultry Livestock
Power Electrical Motor
Voltage 380V
Shaft Quantity Single Shaft
Granularity 8mm-300mm
Blade Dish Diameter 200
Transport Package Wooded Box and Bulk
Specification Capacity 1ton-50ton
Trademark Aoerheng
Origin China
Production Capacity 100000 Sets/Year
Product Description
High streng crusher animal carcass shredder for dead cattle and pig 1. shredder shows and brief:

Double shaft shredding machine is also known as shear shredding machine. its basic principle is to reduce the size of the material through the corresponding knife plate shear. tear and extrusion force. Widely used in industrial waste.household waste.dangerous waste. kitchen waste. plastic pipe. medical waste.sick and dead animals and other materials crushing and reducing work

High Streng Crusher Animal Carcass Shredder for Dead Cattle and Pig


2. Shredder drawing and name :

High Streng Crusher Animal Carcass Shredder for Dead Cattle and Pig

1Electric motor 2Fixed nut
3Movement blade dish4Fixed blade
5Main shaft6V-belt
7Belt pully8Reducer
9Coupling 10Hopper
11Frame bearing seat 12Support
13Output hopper
Equipment composition overview: The whole equipment of double shaft shredding machine includes motor. reducer. cutter shaft. frame component (cutter shaft and frame composed of crushing chamber). inlet and outlet hopper. bracket.electrical control cabinet and so on. It through the crushing chamber of the two groups of cutter shaft opposite rotation, cutter disc opposite cross rotation. shear. tear.extrusion and other effects on the material to reduce the size of the material. Excellent crushing effect for hard materials. for difficult to handle tough materials, such as carpets. mattresses. tires and other materials can also be easily torn.

3. Aoerheng Shredder feature:

Double shredding machine - the use of automatic electrical control system. set up the start. stop and hard automatic reverse control functions. Low power. large torque reduction motor. with low speed. low noise and other advantages. Bearing seat adopts split and integrated type. crushing cavity is more firm. suitable for tearing large. extra thick and difficult to break materials.

Aoerheng double shaft shredding machine with large shredding ratio. high production efficiency. reasonable structure. safe use. low power consumption. low maintenance costs and other significant characteristics and welcomed by the majority of users.

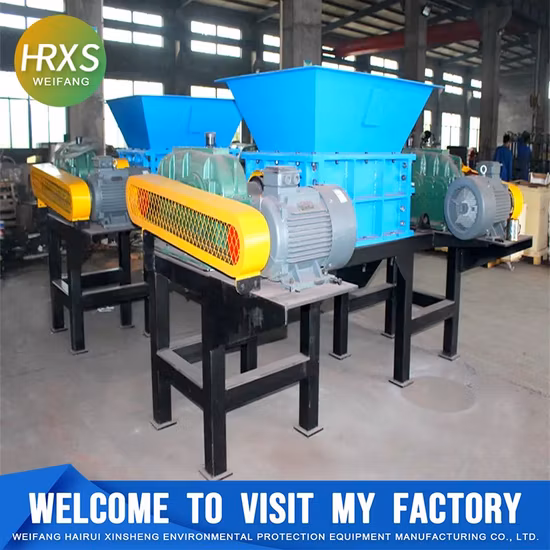

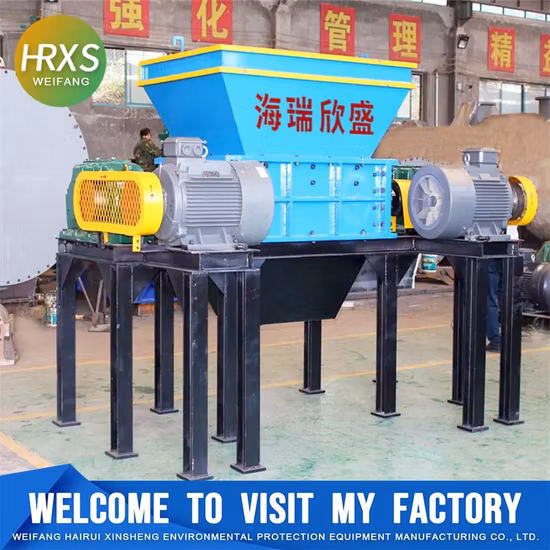

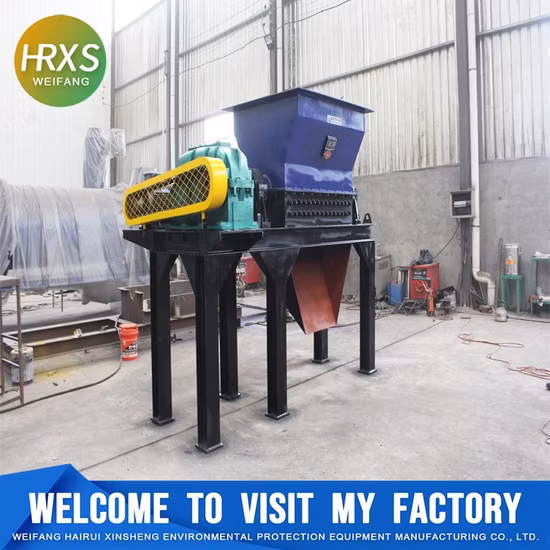

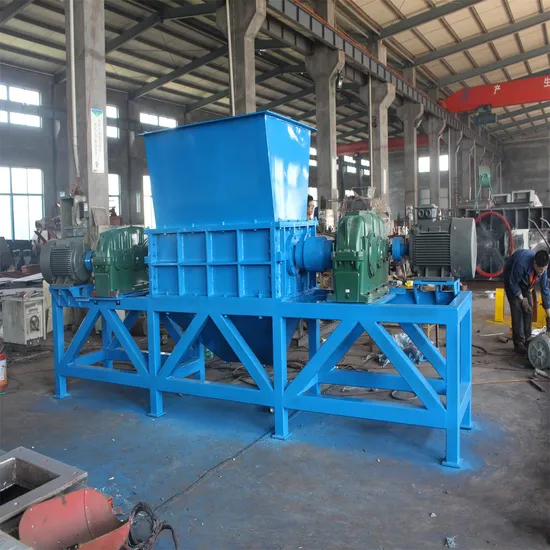

4. Shredder image :

5.Application :
1All kinds of hollow containers: plastic beverage cans. plastic buckets. iron buckets. packing boxes. packing barrels. etc.
2Waste home appliances: TV. washing machine. refrigerator shell. etc
3Pipe: large pipe. pipe fittings. PE pipe. etc
4Used tires: car tires. truck tires. etc
5

Scrap metal: car shell. aluminum alloy. scrap cast aluminum parts.engine shell. lead and thickness in 15mm

Under the steel plate.

6Used formwork: wooden pallet. plastic pallet. forklift pallet. etc
7

Kitchen waste. household waste. animal carcasses. RDF derivatives. medical waste. biological straw. garden

Garbage. etc.;

8Plastic head material. paper factory rope. etc

6. Shredder basic parameter:
No.Type Blade dish diameter (mm)Blade dish thickness (mm)blade dish material(mm)shaft speed(rpm)power(KW) Capacity(T/h)
1ZT-2S0204Φ20010-309CrSi15-257.50.5-1
2ZT-2S0206Φ20010-309CrSi15-257.5x20.8-1.2
3ZT-2S0306Φ30020-35Cr12MoV13-2211x21-2
4ZT-2S0310Φ30020-35Cr12MoV13-2215x21.5-2.5
5ZT-2S0410Φ40020-40H1313-2218.5x23-5
6ZT-2S0412Φ40020-40H1313-2218.5x23.5-6
7ZT-2S0416Φ40020-40H1313-2230x25-8
8ZT-2S0516Φ50025-50D55011-2145x27-13
9ZT-2S0520Φ50025-50D55011-2155x29-22
10ZT-2S0626Φ60050-100D5508-1590x230-50

7.Shredder at working site :8.Performance feature:
1the machine can be broken large materials (waste sofa, waste refrigerator, etc.), basket materials, pipes, plates, wood, tires, waste metal barrels, large rolls of film and other materials that are difficult to be broken;
2In the thickness, shape, order and other aspects of the design and processing of unique rotary cutter head, strong shear force, sharp blade, can efficiently complete crushing;
3Extra-thick plate precision processing combined structure frame, large Angle six-edge strong rotation axis, large diameter solid input hopper, combined into a solid crushing chamber, so you can be assured of large materials
4The cutting tool is made of special alloy steel forged by various heat treatments after fine grinding, durable
5
Equipment with low speed, large torque, low noise, dust can meet the characteristics of environmental protection standards

9.Shredder transportation :10.Pay attention:
1broken materials sometimes block the inner cavity of the crusher, and should be stopped for processing. It is firmly not allowed to use hands or other tools in the operation of the machine.
2when crushing large hard materials, it is easy to extrude materials from the crushing chamber. In order to prevent injury, non-staff members are not close to it; When the machine is running, it is strictly forbidden to clean up the sundries and add lubricating oil.
3All sides of the machine should be kept clean and have adequate lighting
4Motor and electrical equipment should meet the safety requirements, the motor shell must be safely grounded;
5large metal and hard objects and other unsuitable materials shall not enter the crushing chamber, otherwise the equipment manufacturer will not bear the relevant responsibility for the damage caused by the equipment;
6It is strictly forbidden to disassemble and repair the equipment without completely cutting off the power supply;
7Personnel are strictly prohibited from close contact with the tool in operation, nor by hand feeding;
8When breaking hard materials that are easy to splash, people should stay away from the equipment and wear eye protection devices
9Personnel should stay away from the feeding port when the equipment is running.

12. Our certification :
