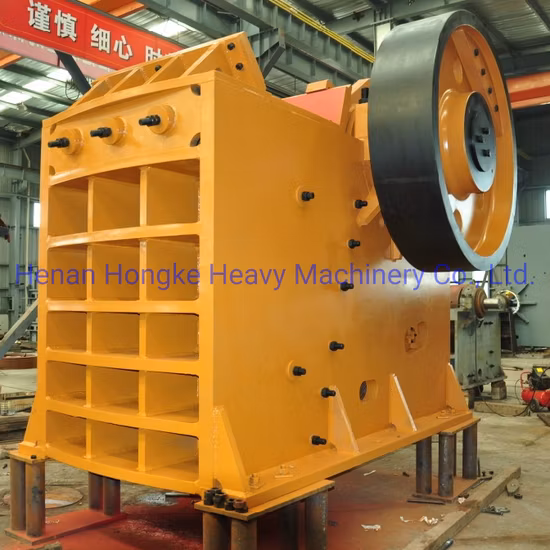

China Capacity 10-300t/H Stone Jaw Crusher for Mining

China Capacity 10-300t/H Stone Jaw Crusher for Mining

Stone Jaw Crusher for MiningStone Jaw Crusher is widely used in the world market mining industry nowadays, for primary c

Send your inquiry

DESCRIPTION

Basic Info
Model NO. PE series
Crushing Style Grinding & Impact
Compressive Strength (For Crushing) >300MPA
Crushing Degree Coarse Crusher
Finished Surface Thread Process
Certification ISO, SGS
Condition New
Color Yellow
Brand Name Hongke
Usage Mining, Stone, Sand, Ore
Warranty Whole Life for Jaw Crusher
After-Sales Service Provided Engineers Available to Service Machinery Overseas
Voltage 200V-400V
Operation Easy
Worker Training Offer
Installation Guide by Technician
Factory Visit Welcome
Transport Package Wooden Box
Trademark Hongke
Origin Henan, China
HS Code 8474209000
Production Capacity 30sets/Month
Product Description
Stone Jaw Crusher for MiningStone Jaw Crusher is widely used in the world market mining industry nowadays, for primary crushing of hard rocks and block materials.The large and medium-size crushers are the key products of our company and stand in the front of the industry in the aspect of design and production.1. Application of Jaw Crusher Jaw Crusher is widely used in mineral, quarry, building materials, road, railway, water conservancy and hydropower.The angle between the fixed jaw and movable jaw becomes smaller.The movable jaw plate leaves the fixed jaw plate under the affection of drawbar and spring, and then the crushed materials are discharged from the lower outlet of the crushing cavity.
2. Features of Jaw CrusherJaw Crusher has features like simple structure, large crushing ratio, high capacity, even particles, convenient maintenance, low production cost and so on.
3. Working Principle of Jaw CrusherThe motor drives the belt wheel, and makes movable jaw up and down by eccentric shaft, when the movable jaw down;The angle between the fixed jaw and movable jaw gets smaller, and the materials can be crushed to reach the crushing target;When the movable jaw rises, the angle between the fixed jaw and movable jaw becomes larger; the movable jaw plate leaves the fixed jaw plate under the function of drawbar and spring; and then the crushed materials are discharged from the lower outlet of the crushing cavity.4.Technical parameters of Jaw Crusher
ModelMax. Feeding
Size (mm)
Discharge
Size (mm)
Capacity
(t/h)
Motor Power
(kW)
Overall Dimensions
(mm)
Weight
(t)
PE250×40020020-605-20151150×1275×12402.8
PE400×60035040-10015-60301700×1732×16536.5
PE500×75042550-10050-100552035×1921×200010.3
PE600×90048065-16060-130752290×2206×237016.5
PE750×106063080-14080-1801102620×2302×311029
PE900×120075095-165140-2601103789×2826×302554.5
PEX250×75021025-6010-40221667×1545×10205
PEX250×100021025-6015-50301550×1964×13806.5
PEX250×120021025-6020-60371560×2104×14157.7
5.About our company jaw crusher
